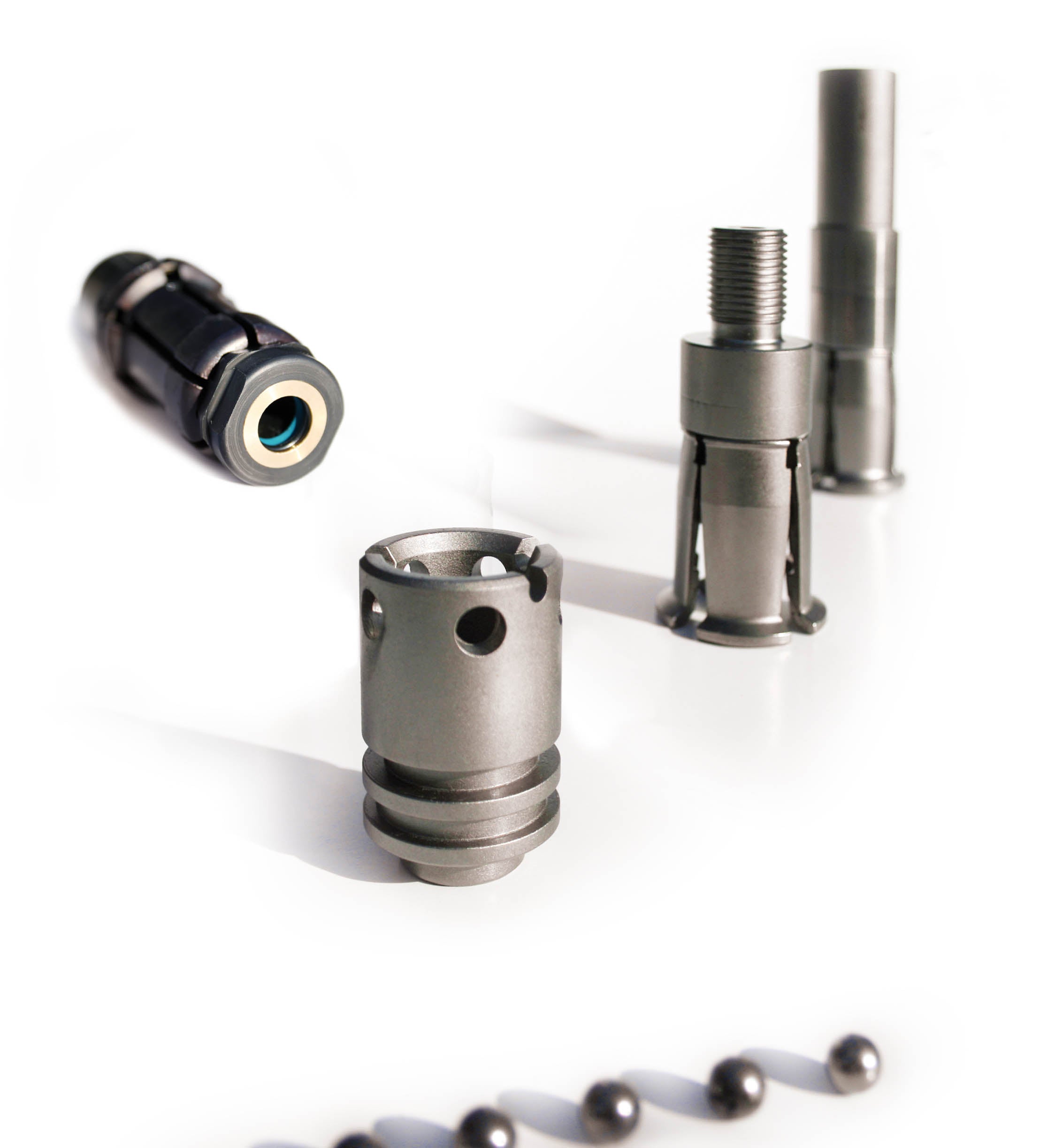

HSK & ISO Spindle Grippers (Petal Collets) – How They Work & Why Maintenance Matters

HSK & ISO Spindle Grippers (Petal Collets) – How They Work & Why Maintenance Matters

The Role of Spindle Grippers and Petal Collets in CNC Tool Holding

Why Spindle Grippers and Petal Collets Matter in CNC Machines



In high-precision CNC machining, accurate tool retention is essential for stability, repeatability, and cutting performance. HSK spindle grippers and ISO, CAT, and BT petal collets are key components that:



✅ Clamp the tool holder or retention knob inside the spindle.
✅ Ensure precise tool positioning, helping reduce runout.
✅ Provide secure tool retention during high-speed machining and heavy cutting loads.



👉 Watch our in-depth video guide on HSK and ISO spindle grippers below.





What Are Spindle Grippers and Petal Collets?



Spindle grippers and petal collets are spring-loaded clamping systems designed to retain the tool holder or retention knob inside the spindle. Their function is to create a secure, precise, and repeatable connection between the CNC machine and the tool holder.



HSK Spindle Grippers



  • Clamp directly inside the HSK tool holder taper, ensuring maximum contact surface.
  • Provide high rigidity and improved radial stiffness.
  • Are ideal for high-speed machining thanks to strong and stable clamping force.



ISO, CAT, and BT Petal Collets



  • Clamp onto the retention knob to generate the required holding force.
  • Are commonly used in machining centers with automatic tool changers.
  • Require correct retention knob selection to guarantee safe and reliable clamping.



Key difference: HSK grippers retain the tool holder from inside the taper, while ISO, CAT, and BT systems rely on a retention knob clamping mechanism.





Common Problems Caused by Worn or Dirty Spindle Grippers



Spindle grippers and petal collets can operate thousands of times per day. For this reason, regular inspection and maintenance are essential to keep CNC machines running safely and accurately.



❌ Reduced clamping force → risk of tool holder slippage.
❌ Increased runout → poor surface finish and loss of accuracy.
❌ Retention failure → the tool holder may not remain safely locked during machining.
❌ Excessive wear on tool holders and spindle taper → higher maintenance costs and machine downtime.





How to Maintain HSK Spindle Grippers and ISO Petal Collets



Step 1: Routine Inspection



Regularly check:



  • Wear or damage on the gripper fingers.
  • Correct spring tension and clamping response.
  • Metal chips, dust, or debris inside the clamping system.



Machtechsolution technical tip: if the tool holder is not clamping securely, the spindle gripper or petal collet may need to be cleaned or replaced.





Step 2: Cleaning the Spindle Gripper or Petal Collet Assembly



Recommended tools:



  • Compressed air.
  • Non-abrasive degreaser or isopropyl alcohol.
  • Soft brush or lint-free cloth.



Cleaning process:
1️⃣ Remove chips and dust using compressed air.
2️⃣ Apply a non-aggressive degreaser to remove old lubricant and contaminants.
3️⃣ Wipe the assembly clean with a lint-free cloth.



Machtechsolution technical tip: never use aggressive solvents that may damage precision clamping surfaces.





Step 3: Lubrication and Reassembly



  • Apply a thin layer of spindle-compatible lubricant.
  • Avoid over-lubrication, which can attract dust and reduce clamping performance.
  • When replacing components, always follow the machine or spindle manufacturer’s specifications.



Machtechsolution technical tip: for high-speed spindle applications, use lubricants suitable for high temperatures.





When Should Spindle Grippers and Petal Collets Be Replaced?



Even with correct maintenance, spindle grippers and petal collets wear over time. They should be replaced when:



⚠ Clamping force is reduced, causing possible tool holder slippage.
⚠ Visible cracks or deformation appear on the gripper fingers.
⚠ Excessive wear on tool holders indicates poor or uneven clamping contact.



Using worn spindle grippers or petal collets can result in tool ejection, spindle damage, and inconsistent machining performance.





Choose High-Quality Spindle Grippers and Petal Collets for Your CNC Machine



For maximum tool retention, precision, and reliability, it is important to use high-quality spindle grippers and petal collets designed for HSK, ISO, CAT, and BT tool holder systems.



Machtechsolution supplies professional CNC tooling accessories for machine shops working with wood, aluminum, plastics, composites, glass, stone, and advanced materials.



Contact Machtechsolution to choose the correct spindle gripper or petal collet for your CNC machine.





Conclusion: Keep Your CNC Machine Running at Peak Performance



Regular inspection, cleaning, and replacement of spindle grippers and petal collets is essential for machining accuracy, tool safety, and spindle life. By following proper maintenance practices, CNC operators can improve machining consistency, reduce downtime, and protect both the machine and the tool holder system.



Need expert advice? Contact Machtechsolution for professional support in selecting the correct spindle grippers and petal collets for your CNC setup.
